DNA IN-EAR WIRELESS MONITOR
Price 135 €Leasing calculators- artea
Technical specifications:
Type: monaural system
Modulation: Π/4 - DQPSK
Frequency range: 518-542 MHz, 2x100/4x50CH
Sampling rate: 48 kHz
Data rate: 204,8 kbps
Dynamic range: >90 dB
Total Harmonic Distortion: <0.1%
Audio transmission delay: <3 ms
Sound to noise ratio: >96dB
Frequency response: 30 ~ 20 kHz
RX sensitivity: < -94dBm
Housing dimensions: 41 x 27 x 12.5 cmManufacturer-

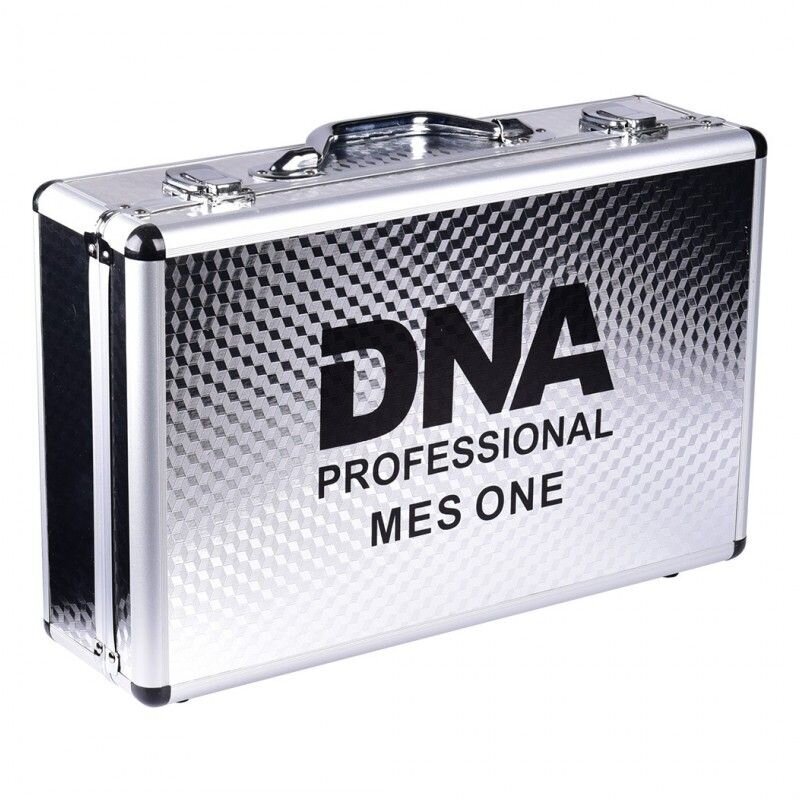

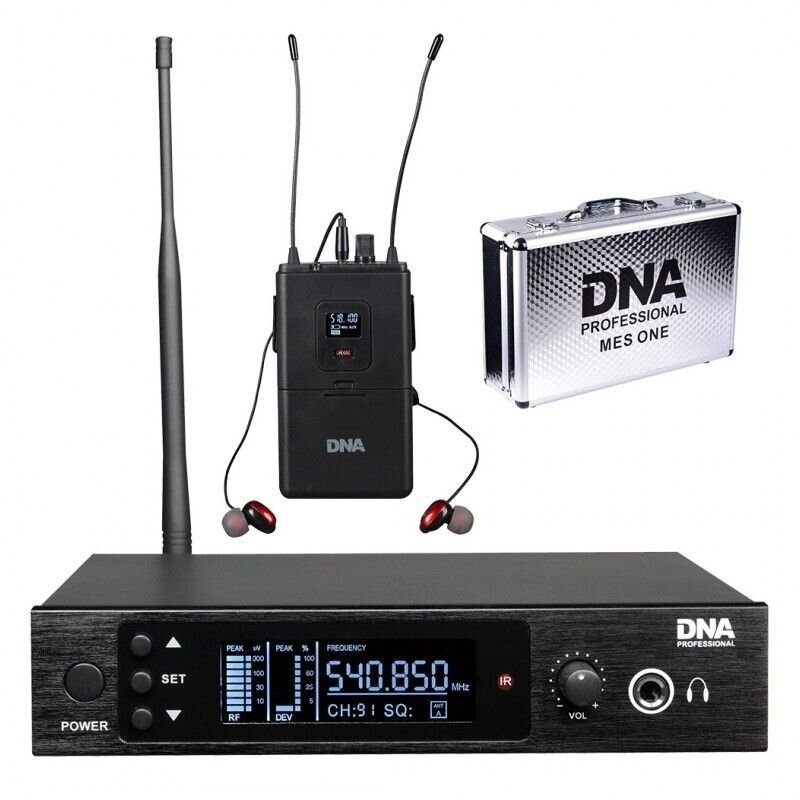

"DNA IN-EAR is a high-quality wireless monaural headphone listening system based on digital technology. The audio monitoring kit consists of a pair of in-ear headphones, an ultra-low frequency (UHF) transmitter and a clip-on receiver (bodypack). The whole unit is housed in an elegant case filled with a soft technical sponge with specially designed recesses for storing and safely carrying the equipment.

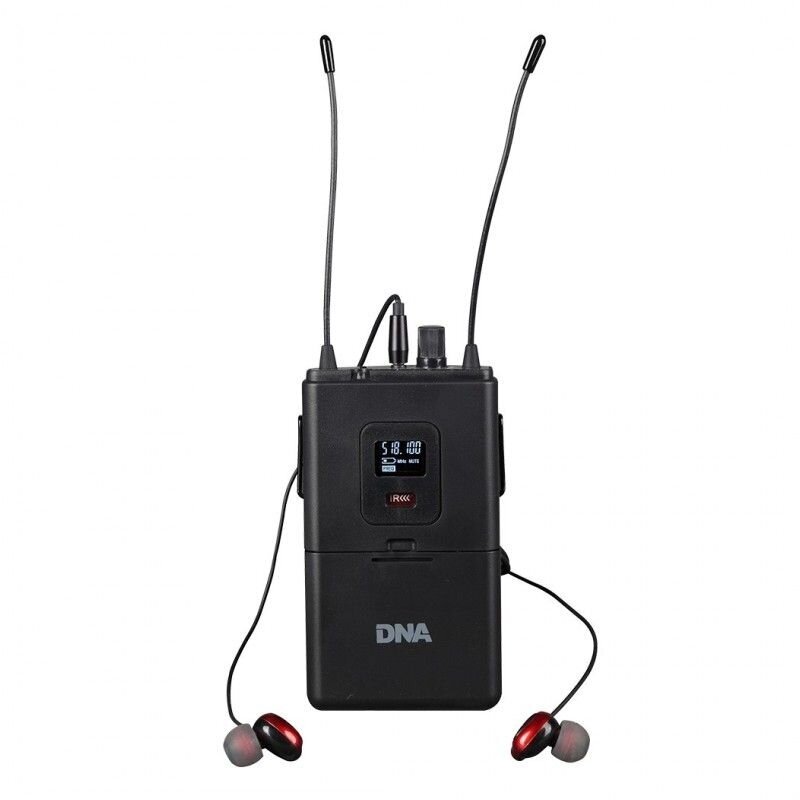

The receiver features an easy-to-read LCD display and an IR (infrared sensor) port to synchronise the output signal with the receiver. The upper part of the housing contains a rotary power and volume potentiometer, a power level indicator, a headphone jack and two antennas to collect the transmitter signal. The device is powered by two AA batteries, which allow the receiver to operate intensively for up to 8 hours!

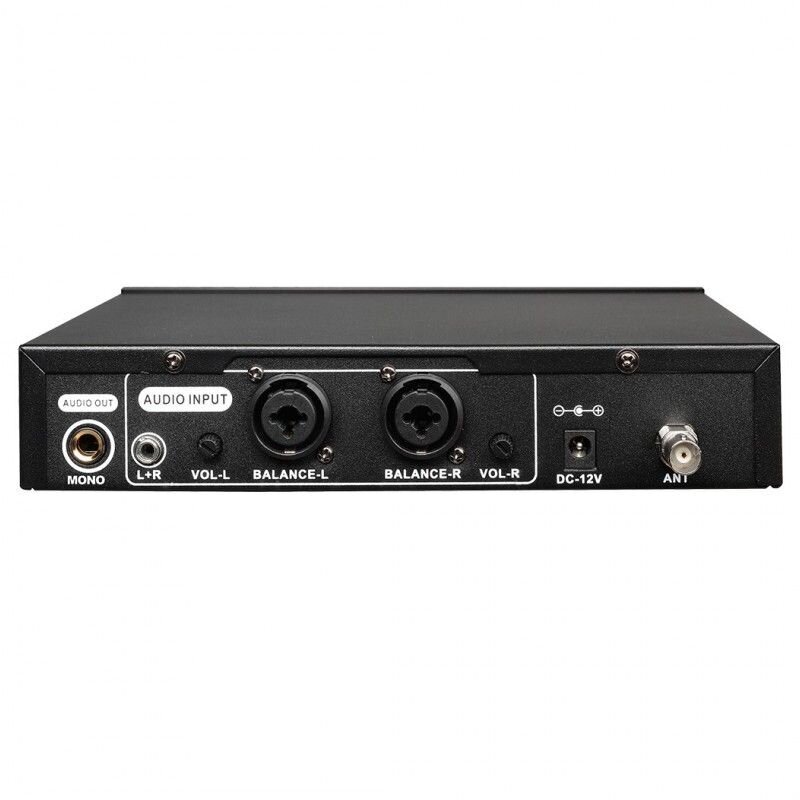

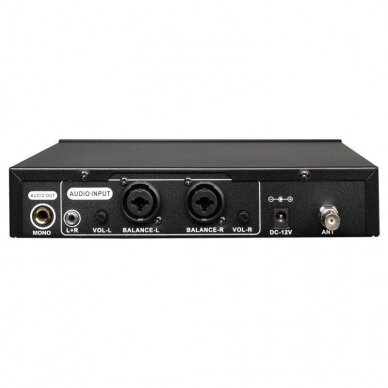

The second part of the system is the radio transmitter, which has a frequency range from 518 to 542 MHz. On the rear side of its housing there are two combined XLR/Jack inputs for the left (L) and right (R) channels, together with rotary volume controls, a jack input (1/4"), a socket for connecting a power supply (included) and a BNC antenna connector. The front panel has a power switch, a headphone jack with volume potentiometer and a control panel with 'Up', 'Down', 'Set' buttons and an easy-to-read LCD display. It displays the current parameters of the audio monitoring system, such as the signal quality level, the headphone frequency setting or the selected data channel.
DNA In-Ear is a professional monitor system that is particularly appreciated by musicians and vocalists, wedding bands, event companies and DJs. This kit eliminates the need for large speakers and cumbersome cables. It is also perfect for venues with limited space. It is easy to use and very ergonomic.
