    Technical specifications:
    Type: monaural system
    Modulation: Π/4 - DQPSK
    Frequency range: 518-542 MHz, 2x100/4x50CH
    Sampling rate: 48 kHz
    Data rate: 204,8 kbps
    Dynamic range: >90 dB
    Total Harmonic Distortion: <0.1%
    Audio transmission delay: <3 ms
    Sound to noise ratio: >96dB
    Frequency response: 30 ~ 20 kHz
    RX sensitivity: < -94dBm
    Housing dimensions: 41 x 27 x 12.5 cm

    Manufacturer
    DNA

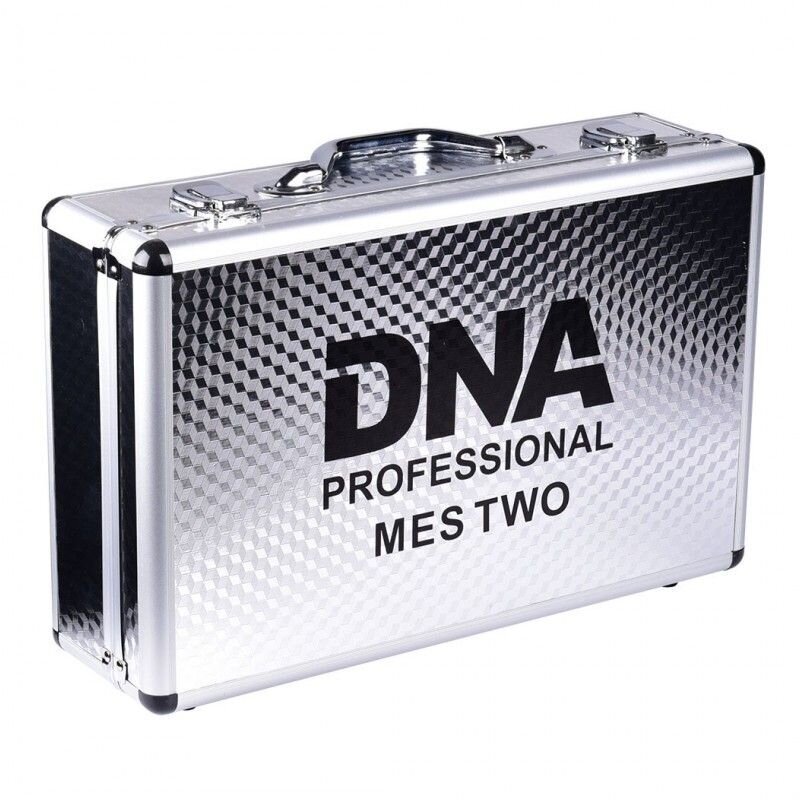

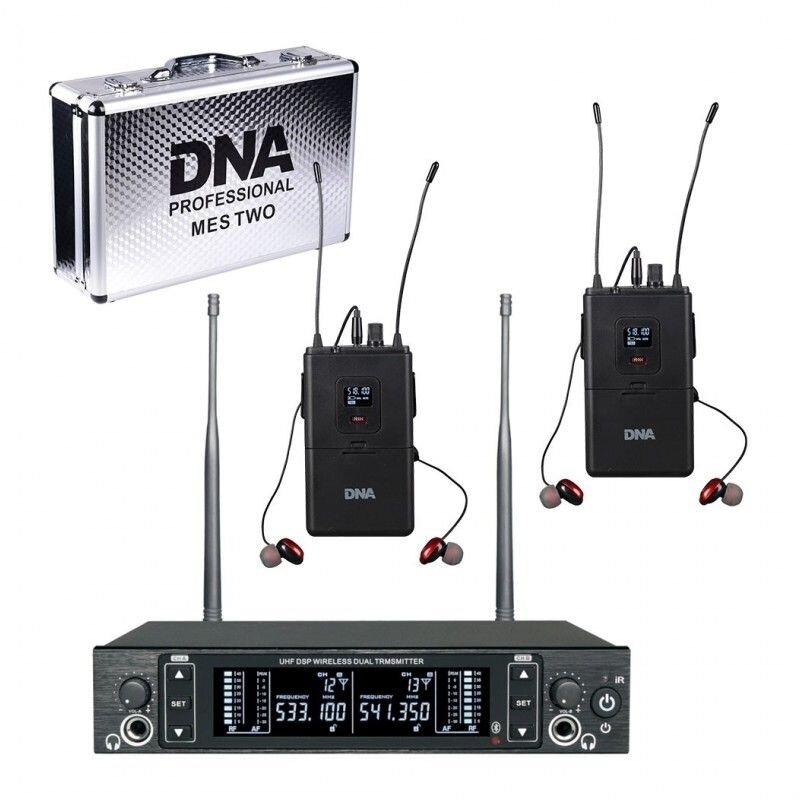

  • DNA IN-EAR DOUBLE is a high-quality wireless monaural headphone listening system based on digital technology. The audio monitoring kit consists of an ultra-low frequency (UHF) transmitter, two pairs of in-ear headphones and two clip-on bodypack receivers. The complete kit is housed in an elegant case filled with a soft technical sponge with specially designed cut-outs to hold the equipment and carry it safely.

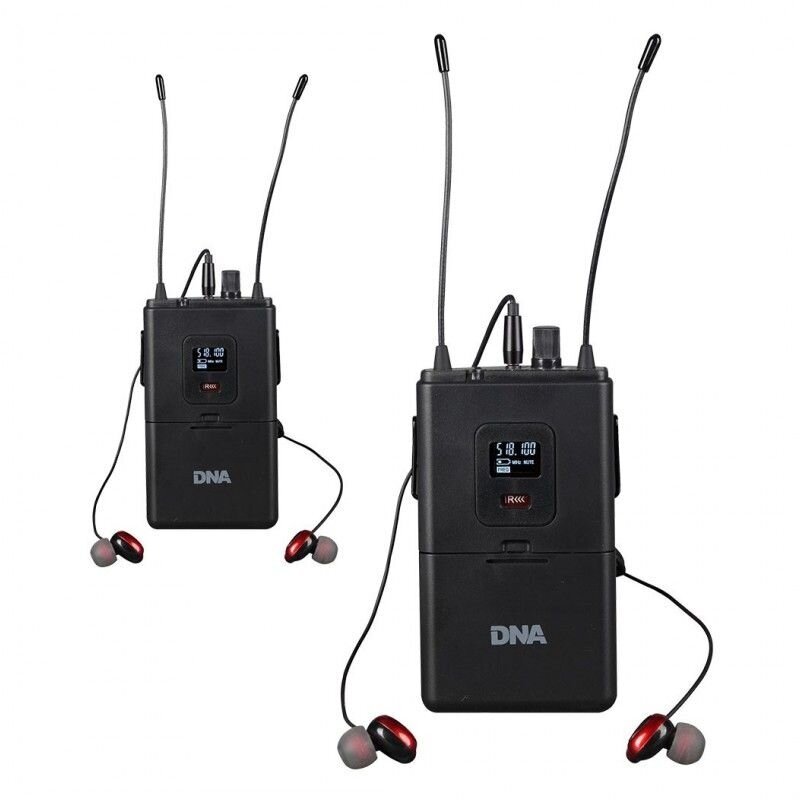

    Each receiver has an easy-to-read LCD display and an IR (infrared sensor) port for synchronisation with the signal from the transmitter. The top of the Bodypack receiver has a rotary power and volume potentiometer, a power level indicator, a headphone jack and two antennas to collect the signal from the transmitter. The device is powered by two AA batteries, which allow the receiver to operate intensively for up to 8 hours!

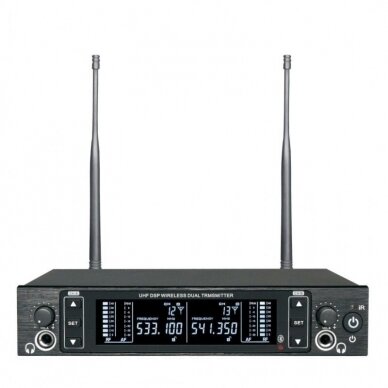

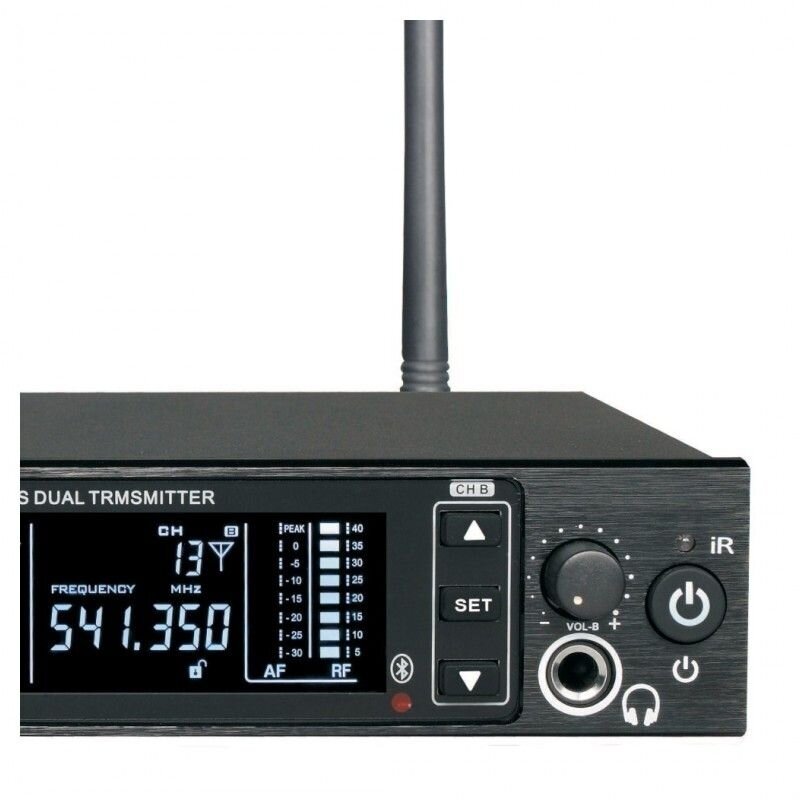

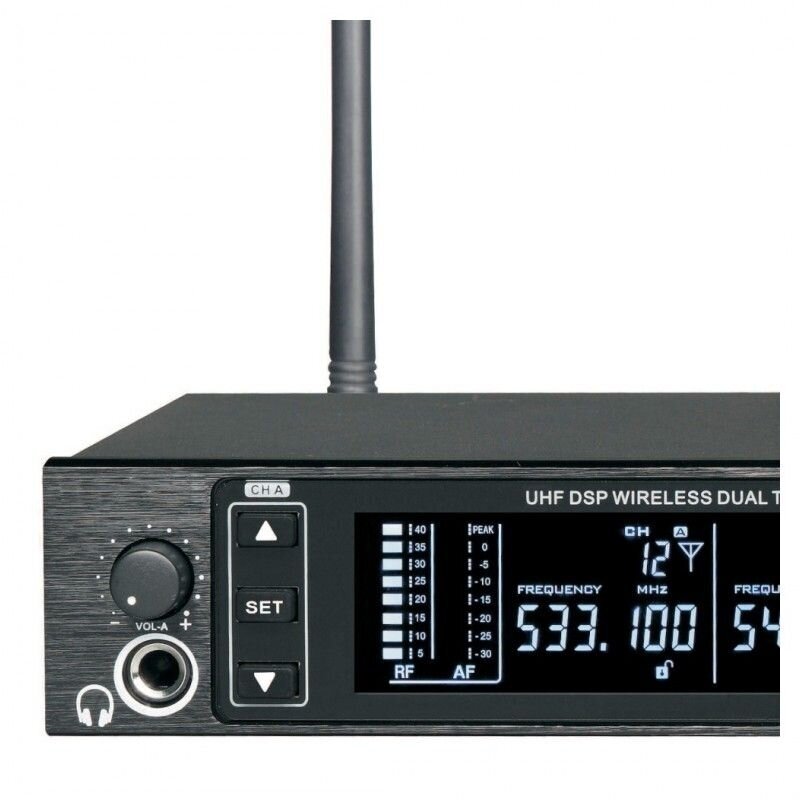

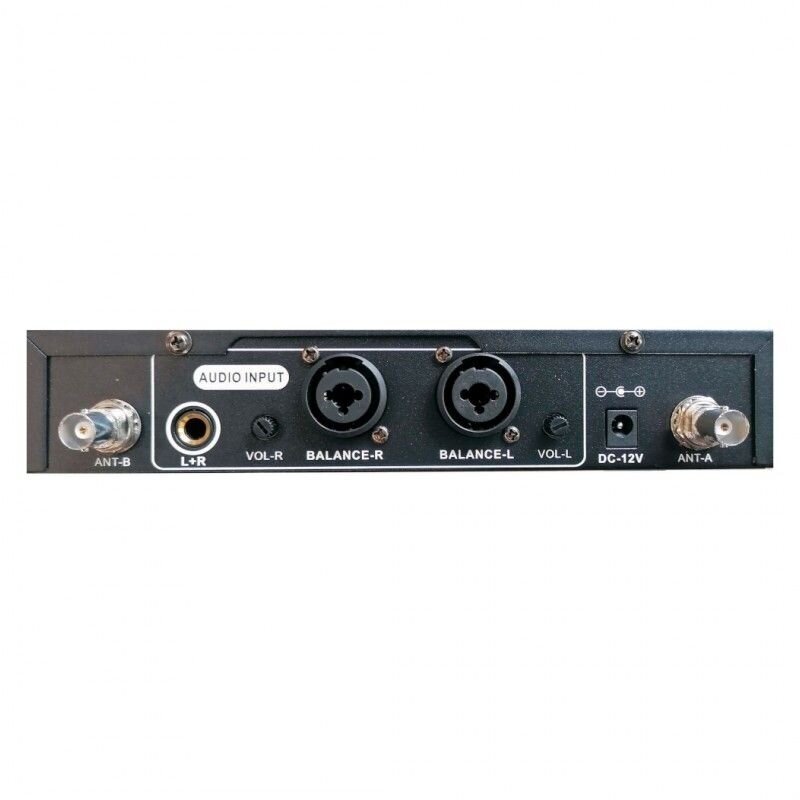

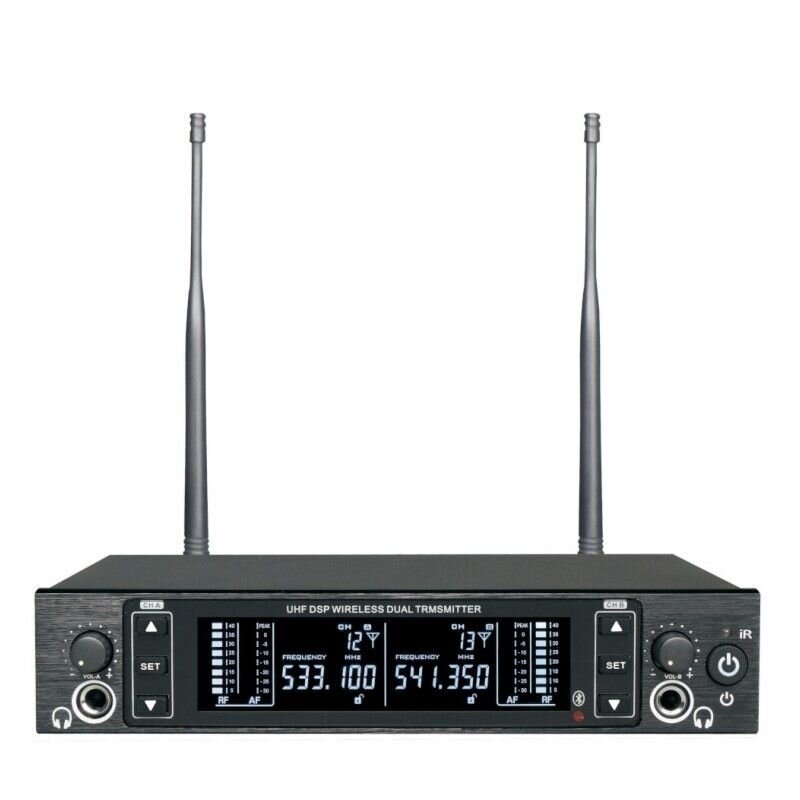

    The second part of the system is the radio transmitter, which has a frequency range from 518 to 542 MHz. On the rear side of the housing there are two combined XLR/Jack inputs for the left (L) and right (R) channels, together with rotary volume controls, a stereo jack input (6,3 mm), a socket for connecting a power supply (included) and two BNC antenna connectors. The front panel has a power switch, two headphone sockets with volume potentiometers and a control panel with 'Up', 'Down', 'Set' buttons and an easy-to-read LCD display. It displays the current parameters of the audio monitoring system, such as the signal quality level, the frequency setting or the selected data channel.

    DNA IN-EAR DOUBLE is a professional monitor system that is especially appreciated by musicians and vocalists, wedding bands, event companies and DJs. This kit eliminates the need for large speakers and cumbersome cables. It's also perfect for spaces where space is at a premium. It is easy to use and very ergonomic.
