  •   Neutrik NAC3FCA - PowerCON Connector

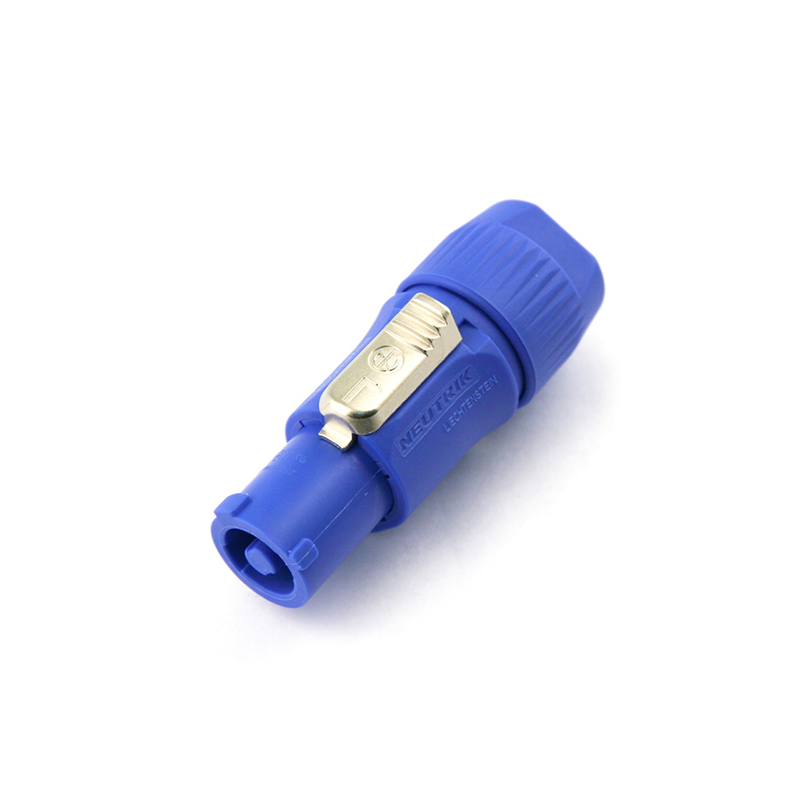

    Neutrik NAC3FCA - PowerCON Connector

    Inquire about this item
    Price 11 €
    Leasing calculators
    • artea

     Features & Benefits
    Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
    Fast and easy twist lock latching system
    Extremely robust and reliable
    Ergonomic design
    Unique Neutrik chuck type strain relief
    Improved kink protection by two-component bushing
    UL, cUL recognized components
    VDE certified
    SEV approved
    Branded with unique hologram - guarantees genuine and authentic Neutrik product

  •  Product
    TitleNAC3FCA
    Genderfemale
    Electrical
    Contact resistance≤ 3 mΩ
    Dielectric strength4 kVdc / 2.8 kVac
    Insulation resistance> 0.1 GΩ (after damp heat test IEC 68-2-30)
    Number of electronical contacts2 + PE
    Rated current per contact20 A rms
    Rated voltage250 V ac
    Mechanical
    Cable O.D.6 - 15 mm (1)
    Lifetime> 1000 mating cycles
    Wiresize2,5 mm²
    Wiresize14 AWG
    Locking deviceQuick Lock
    (1)Cable O.D. range limited to 6 mm - 14 mm acc. VDE
    Material
    Contact plating4 µm Ag
    ContactsBronze (CuSn6)
    InsertPolyamide (PA 6 30 % GR)
    Locking elementZinc diecast (ZnAl4Cu1)
    ShellPolyamide (PA 6 30 % GR)
    Strain reliefPolyacetal (POM)
    Environmental
    Temperature range-30 °C to +80 °C
    Product specific
    Coding
    A-type for power inlet (color coding blue)
