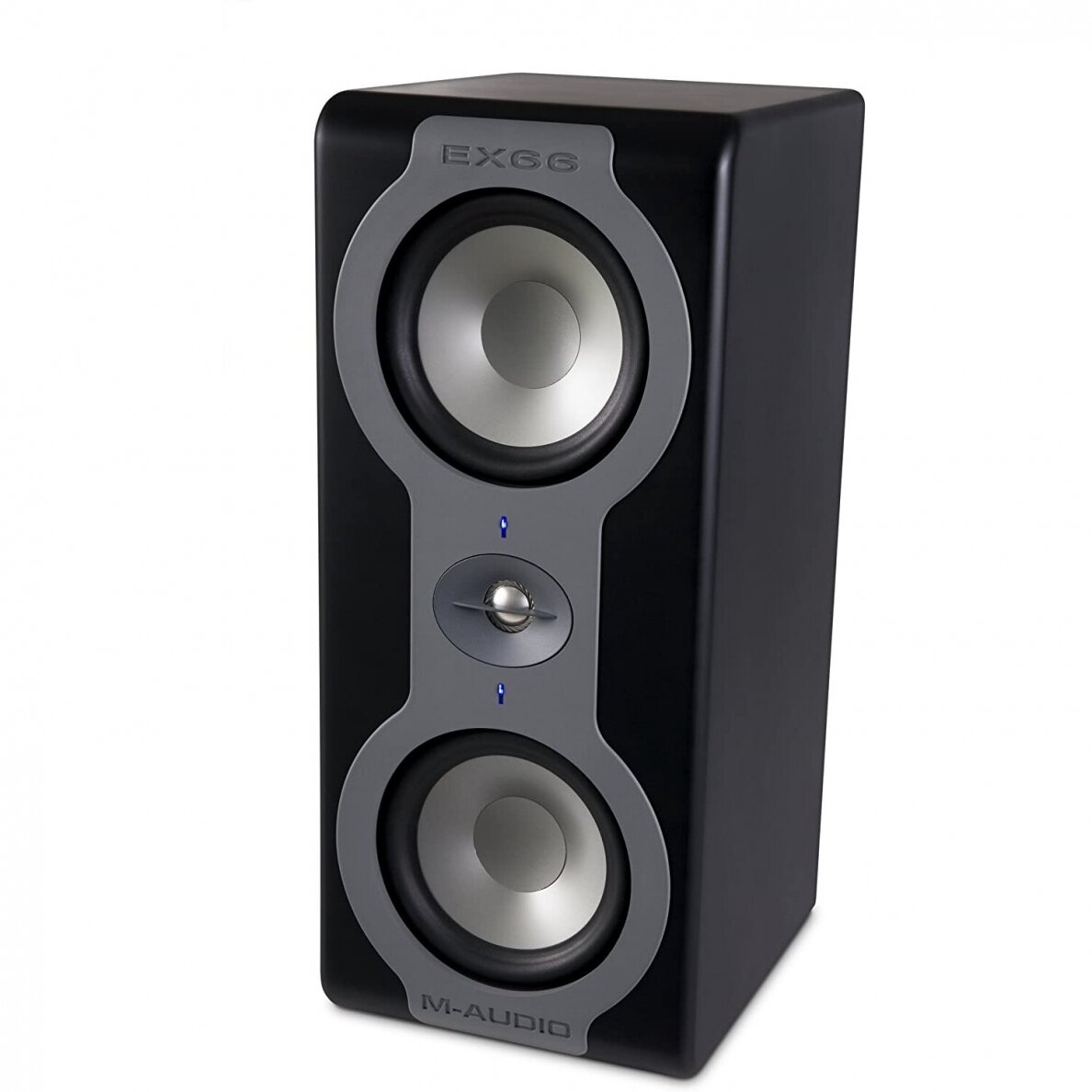

M-AUDIO EX-66 REFERENCE MTM CONFIGURATION MONITOR

Type: MTM studio reference monitor
LF Driver: two 6-inch woofers
HF Driver: 1-inch titanium dome tweeter with wave guide
Frequency Response: 37Hz to 20kHz, near-field acoustic response, (flatness of ±1dB from 70Hz to 19kHz)
Crossover: 2.56kHz 4th-order Linkwitz-Riley maximally flat alignment
LF Amplifier Power: 104 watts (IHF dynamic power into 4 Ω)
HF Amplifier Power: 104 watts (IHF dynamic power into 4 Ω)
THD+N: <0.1% (@ 50 watts into 4 Ω)
Maximum SPL @ 1 meter:
109dB (115dB for a stereo pair) peak

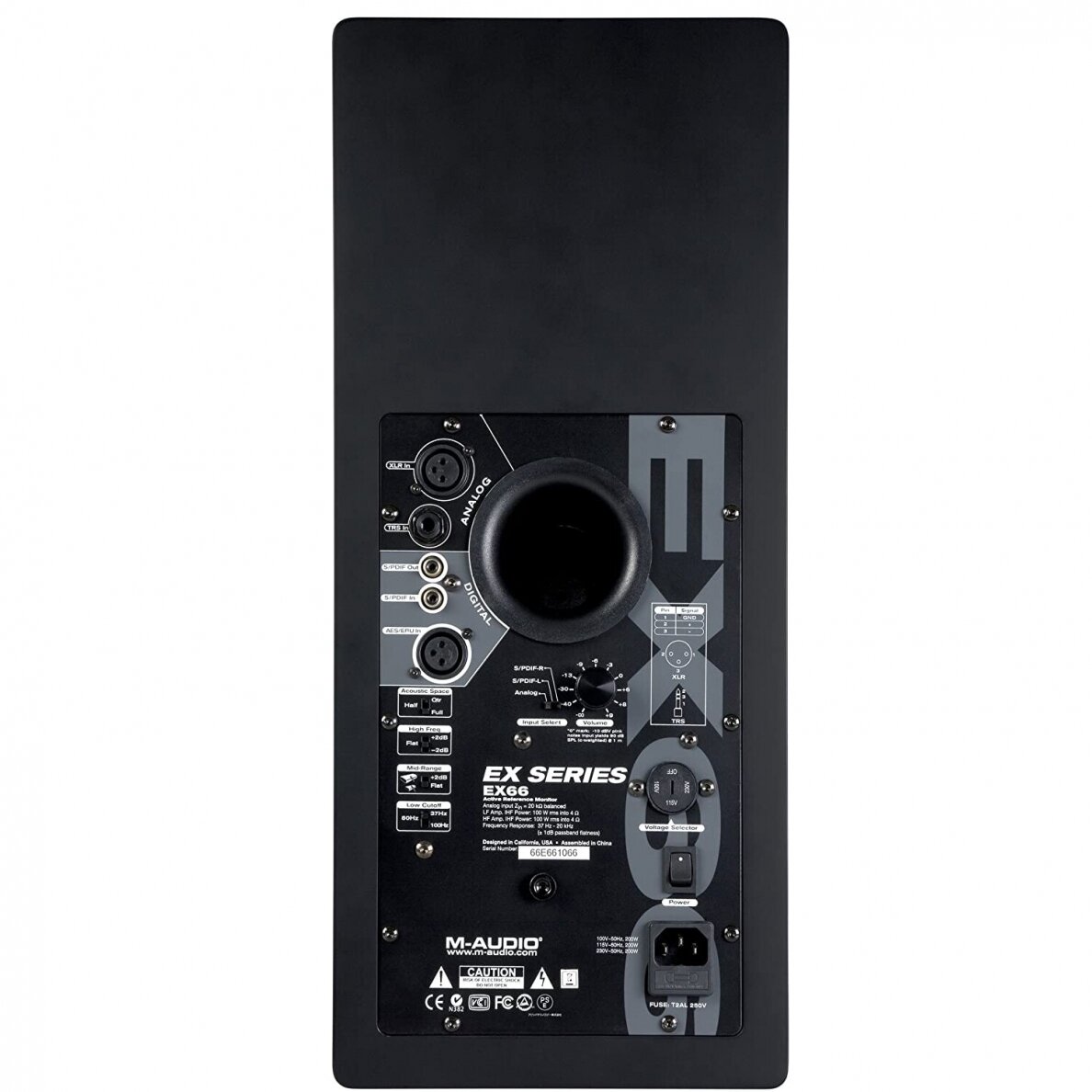

Analog Inputs: XLR balanced (20 kΩ), 1⁄4” TRS balanced (20 kΩ), sampling of 24 bits at 96kHz, sigma-delta switched-capacitor type
Digital Inputs: S/PDIF – In and Thru (75 Ω), AES/EBU (110 Ω), built-in phase lock loop (PLL) to reclock incoming bitstreams with low jitter (<250 psec p-p);
the S/PDIF receiver can lock to an incoming clock of up to 216kHz
DSP 32-bit processing Controls: Acoustic Space (full, half, quarter), High Frequency Adjust (+2dB, flat, -2dB), Mid-Range Boost (flat, +2dB), Low Cutoff (37Hz, 80Hz, 100Hz)
Polarity: positive signal at + input produces outward LF cone displacement
Input Sensitivity: -10dBV pink noise at input yields 90dB SPL (c-weighted) @ 1 meter; variable using input sensitivity (“volume”) control
Protection: RF interference, output current limiting, over temperature, turn-on/off transient, subsonic filter, external mains fuse.
Indicator: power on/off indicator on front panel
Power Requirements: user selectable for 100V ~50/60Hz, 115V ~50/60Hz, and 230V~50/60Hz
Cabinet: painted high acoustic efficiency MDF
Dimension: 482.6 mm (H) x 209.6 mm (W) x 241.3 mm (D)
Weight: 11.18 kg/monitor
