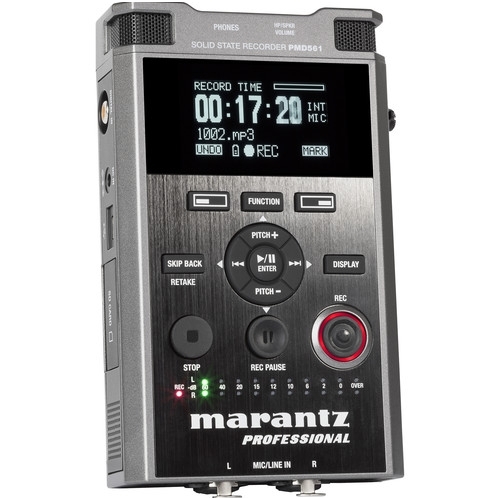

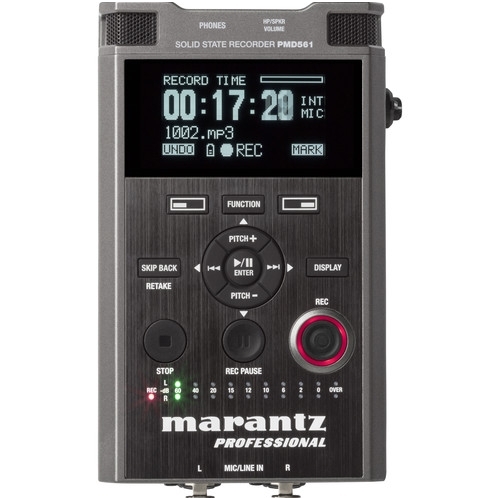

Portable Audio Recorder - Marantz PMD561
Portable Audio Recorder - Marantz PMD561
Price 350 €Features
Record professional-grade audio directly to SD/SDHC flash media

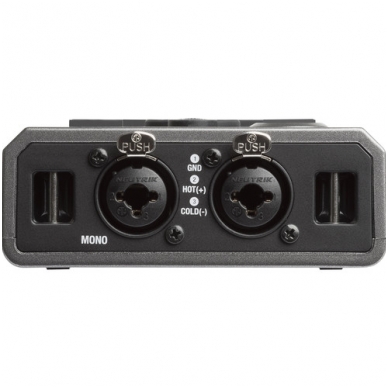

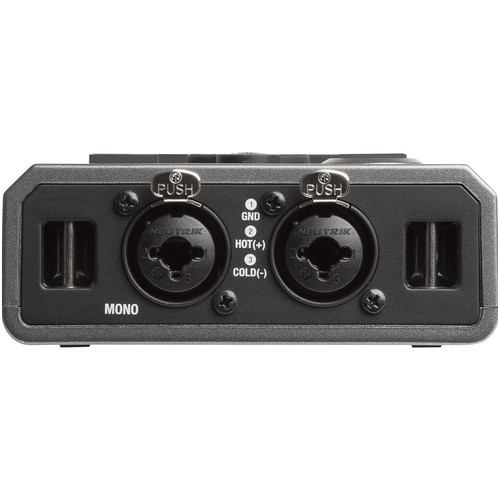

2 x balanced XLR mic inputs with +48V phantom power
Selectable WAV / MP3 recording in mono or stereo
44.1, 48 and 96 kHz sample rates in WAV formats
Selectable 16-/24-bit recording depths in WAV formats
6 selectable bit rates from 32 kbps to 320 kbps for MP3

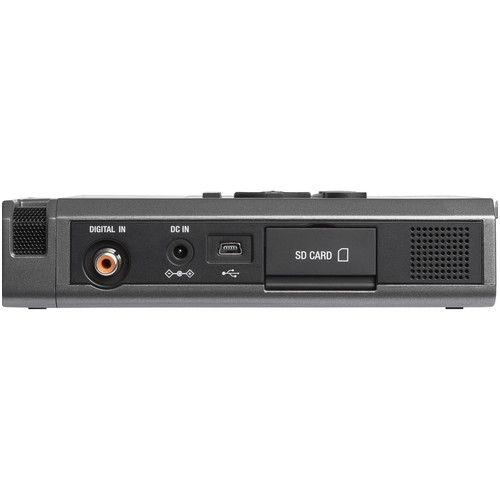

S/PDIF digital input for connecting to studio interfaces and more
On-board pitch-shifting buttons to speed/slow playback
On-board level LEDs

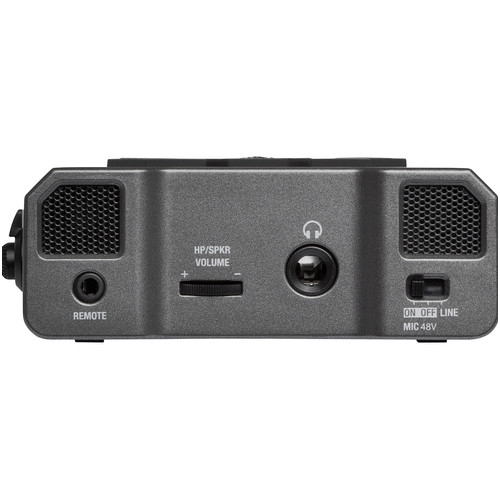

Remote control jack for optional RC600PMD and external remote controller
Connections make it suitable for recording microphones, stereo receivers, amplifiers, and other line-level signals-
Portable Recorder
Number of Tracks 2
Max Sample Rate/Resolution 96 kHz / 24-Bit
Microphone Built-In Stereo Pair
Built-In Speaker Yes, 450 mW Stereo
Memory Card Support SD, SDHC
Recording
Audio File Formats MP3, WAV
Sample Rates WAV:
44.1 / 48 / 96 kHz
Bit Depth 16/24-Bit
Bit Rates 32 to 320 kb/s
Timecode No
Connectivity

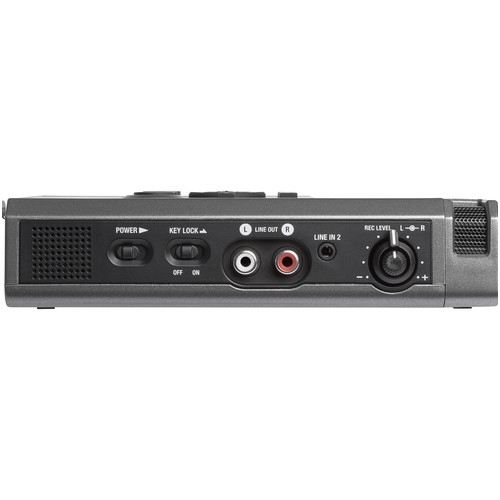

Analog I/O 2 x Combo XLR / 1/4" TRS Line/Mic Input
1 x 1/8" / 3.5 mm Line Input
2 x RCA Line Output
1 x 1/4" TRS Headphone Output
Digital I/O 1 x Digital RCA S/PDIF Input
Phantom Power +48 V
Phantom Power Current ≤10 mA
Host Connection 1 x Mini-USB
Performance
Frequency Response 20 Hz to 24 kHz +1 dB
Headphone Output Power 16 mW into 32 Ohms
Dynamic Range 85 dB
SNR Mic Inputs:
65 dBA
Line Inputs:
85 dBA
THD Mic Inputs:
0.08%
Line Inputs:
0.02%
Power

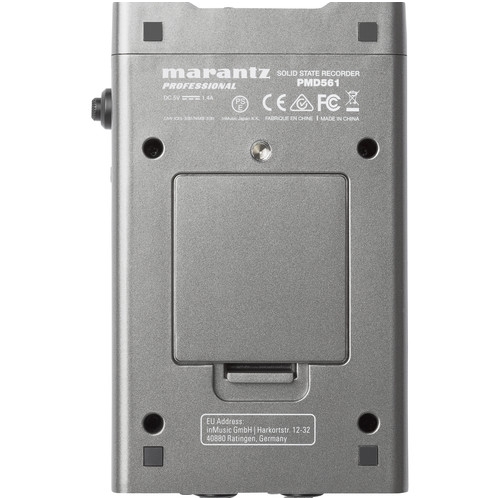

Battery Type 4 x AA
Approximate Battery Life 7 Hours

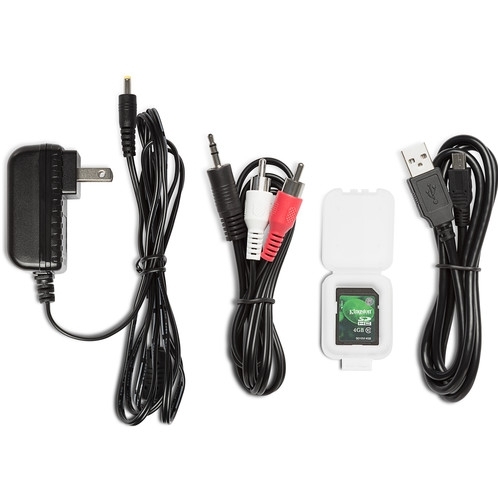

AC/DC Power Adapter 5 VDC at 1.5 A, Center-Positive (Included)
Physical
Dimensions 4.1 x 1.6 x 6.7" / 105.0 x 40.0 x 170.0 mm
Weight 12.5 oz / 353.0 g (without Batteries)
