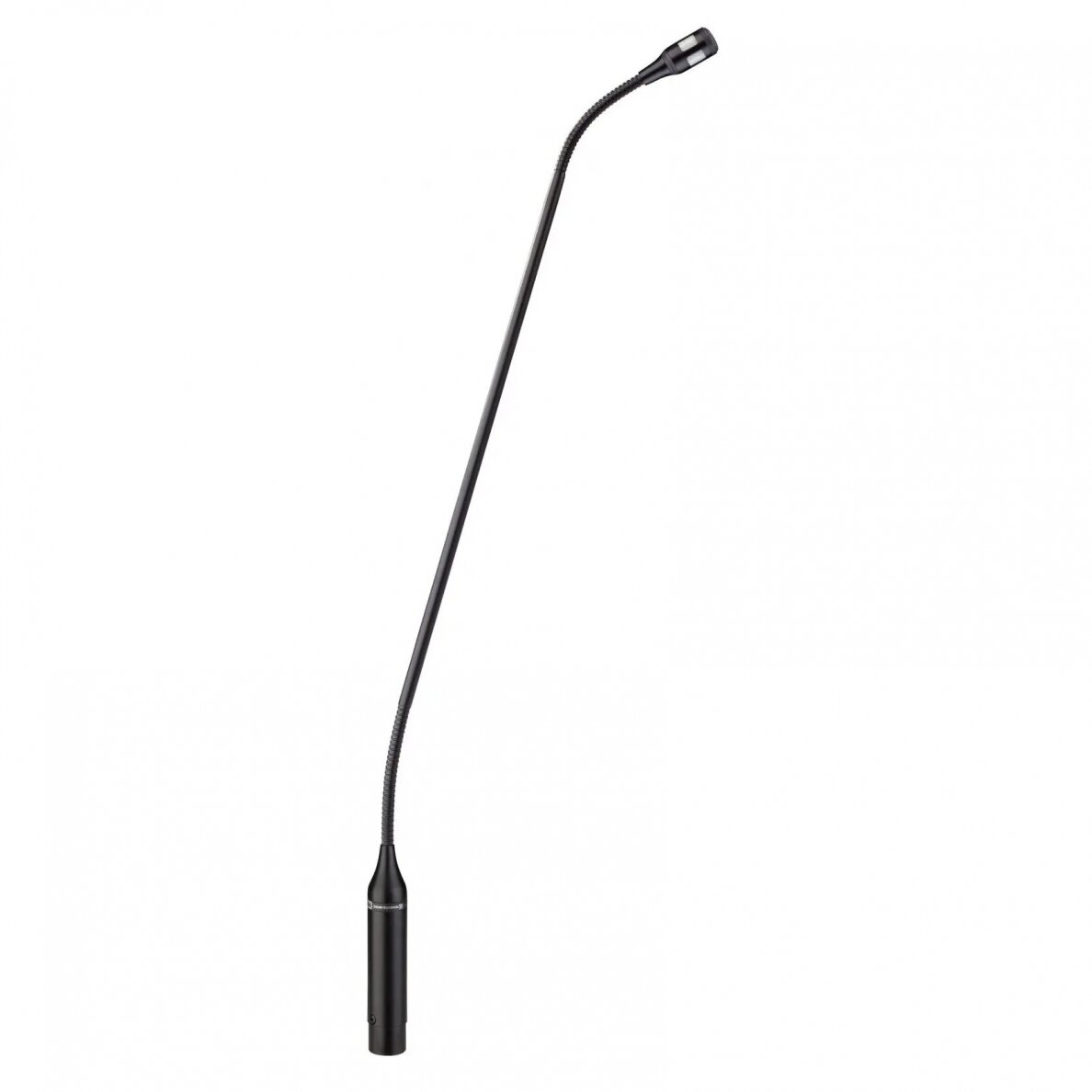

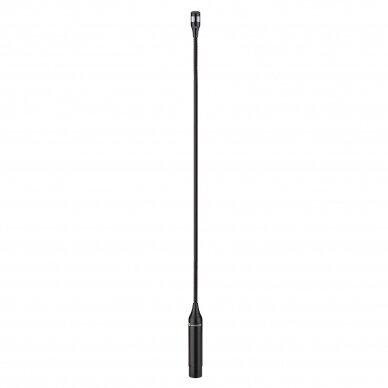

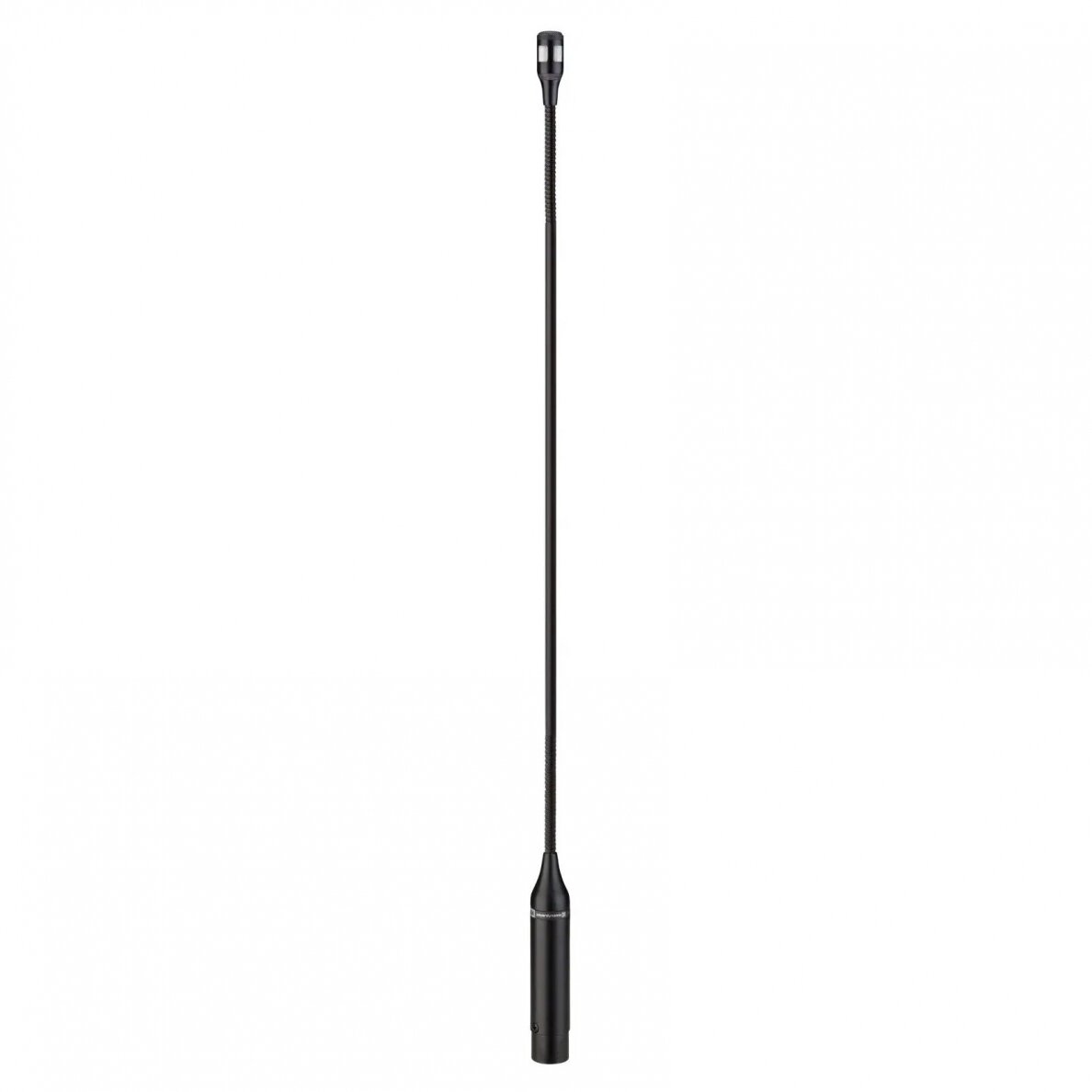

BEYERDYNAMIC CLASSIS GM 315 E Gooseneck Microphone (cardioid), 500 mm length
BEYERDYNAMIC CLASSIS GM 315 E Gooseneck Microphone (cardioid), 500 mm length
Price 285 €Transducer type . . . . . . . . . . . . . . . . . Electret condenser
Operating principle . . . . . . . . . . . . . . . Pressure gradient
Polar pattern. . . . . . . . . . . . . . . . . . . . Cardioid
Frequency response . . . . . . . . . . . . . . 50 - 19,000 Hz
Open circuit voltage . . . . . . . . . . . . . . 17 mV/Pa*
Signal to noise ratio / noise voltage. . . 69 dB [A] / 6,0 µV [A]*
Max. SPL. . . . . . . . . . . . . . . . . . . . . . . 107 dB
[SPL @ 1% THD]*
Equivalent SPL . . . . . . . . . . . . . . . . . . 25 dB [A]*
Wiring GM 31x. . . . . . . . . . . . . . . . . . 5-pin XLR connector
Current consumption LED ring
with internal series resistor of 500 Ω
at 5 V supply voltage . . . . . . . . . . . . . 6 mA
at 12 V supply voltage . . . . . . . . . . . . 20 mA
Electrical parameters of the capsule
with 2-pole connection without the
CVE 305.18 power supply unit:
Supply voltage . . . . . . . . . . . . . . . . . . 1.5 - 10 V
Series resistor (recommended). . . . . . . 2.2 kohms
Sensitivity . . . . . . . . . . . . . . . . . . . . . . approx. -47 dBV/Pa
Dimensions
Length . . . . . . . . . . . . . . . . . . . . . . . . depending on the version
Head diameter . . . . . . . . . . . . . . . . . . 13.6 mm [0.5"]
Gooseneck diameter. . . . . . . . . . . . . . 6 mm [0.2"]
Shaft diameter . . . . . . . . . . . . . . . . . . 20 mm [0.8"]
Weight . . . . . . . . . . . . . . . . . . . . . . . . depending on the versionManufacturer-
Gooseneck Microphone (cardioid), without pre-amp, 500 mm length.
The gooseneck microphones of the Classis series with an extremely small microphone head meet the requirements of design. The thin gooseneck of 6 mm with a mat black, non-glare surface can be discretely integrated into any installation. The improved cardioid polar pattern of the microphones ensures maximum volume due to a high gain before feedback with excellent intelligibility of speech. The versatile series allows many kinds of application: the use with speaker‚ desks or altars, the use in conference systems, in studio and sound systems for mixing consoles and the use as stationary microphone in paging systems.
Features:
- Without pre-amp, can be used with MCS 563 L, MCS 553 L and MCS-D 3643
- RFI-proof with respect to wireless communication devices thanks to Scudio‚ technology
- Outstanding feedback resistance
- Unobtrusive thanks to small dimensions
- Length 500mm
